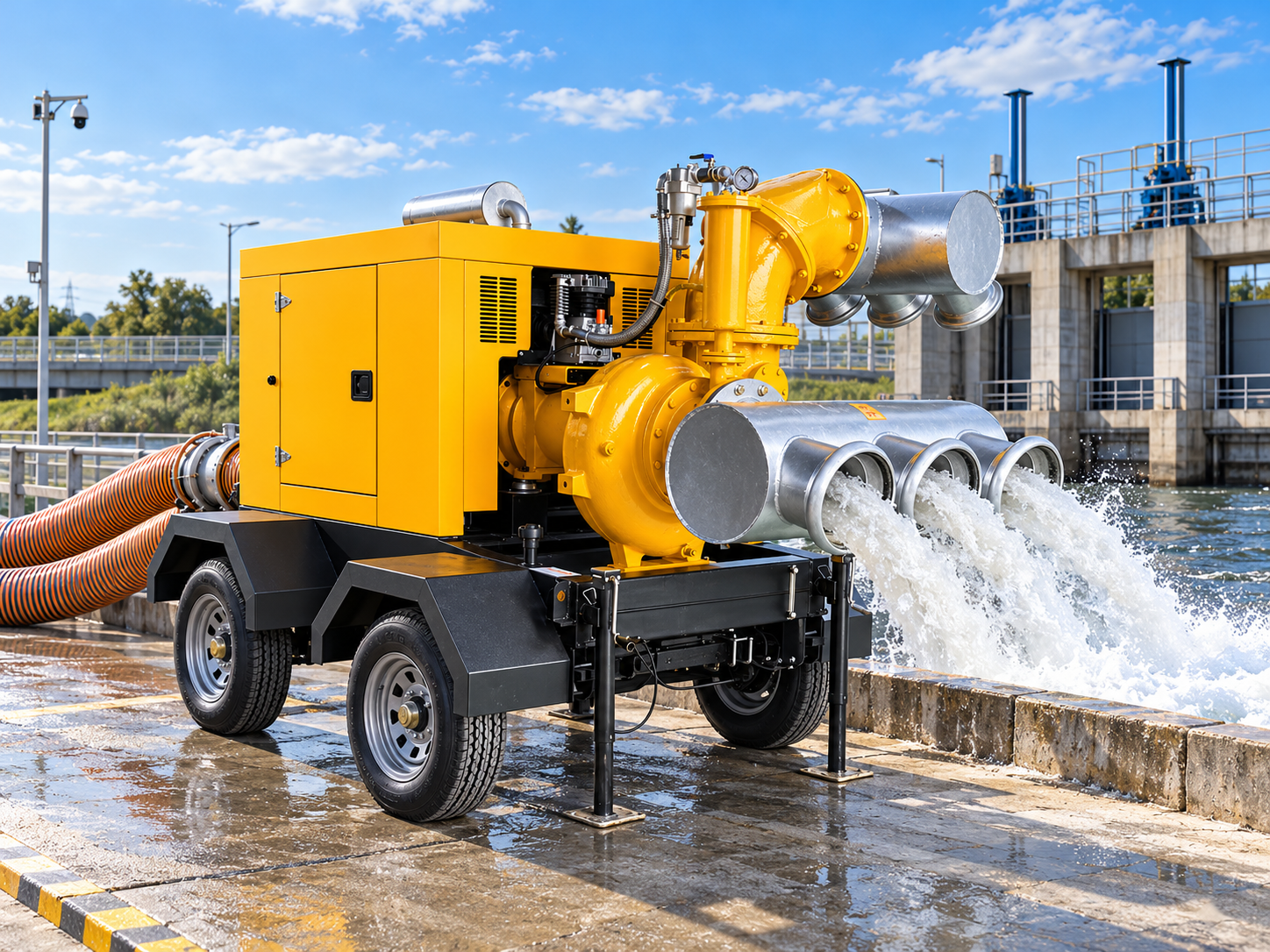

Trailer-mounted diesel dewatering pump operating on site

MOBILE DEWATERING & INDUSTRIAL PUMP SYSTEMS

HIGH-FLOW WATER MOVEMENT FOR SITES THAT CANNOT WAIT.

High-flow mobile pumping for construction dewatering, flood control, municipal drainage and industrial transfer. Compare the system by flow at head, suction, priming, solids handling, runtime, controls and trailer duty — not by engine size alone.

Build the Pump Duty → Discuss Your Project →

CONSTRUCTION FLOOD CONTROL MUNICIPAL MINING / INDUSTRIAL

BUYING BASISFlow @ Head

SITE CONDITIONSuction + Solids

SYSTEMPriming + Engine + Trailer

RELEASEFunctional Test

01 · DEFINE THE DUTY

Start with the water path, not the engine size.

For large mobile dewatering systems, headline “maximum flow” is not enough. The buyer needs an agreed operating point and site basis before supplier quotations can be compared.

FLOWHow much water must move?m³/h at the required operating point

HEADHow much resistance?Static lift + hose + fittings + losses

SUCTIONCan the system prime reliably?Lift · air leakage · priming system

SOLIDSWhat is actually in the water?Clean · muddy · debris · solids

Buyer check “Maximum flow” and “maximum head” are normally different points on the pump curve. They should not be treated as simultaneous performance.

Trailer-mounted diesel dewatering pump with large suction hose connected

Product reference image supplied for page development. Use as product/application context, not as historical project evidence.

02 · SYSTEM ARCHITECTURE

This is a mobile pumping system — not only a centrifugal pump.

The pump, diesel engine, priming arrangement, controls, enclosure, fuel system, trailer and hose interfaces all affect whether the equipment can be deployed repeatedly and kept running on site.

01Pump & hydraulics

Impeller, volute, passage size, seal, wear parts and hydraulic efficiency.

02Priming system

Priming method, air-handling capability, suction sealing and restart behavior.

03Diesel power

Engine sizing, cooling, fuel consumption, service parts and duty suitability.

04Trailer & deployment

Axles, tyres, drawbar, outriggers, hose connection and transport durability.

03 · WHERE IT EARNS ITS VALUE

Built for applications where downtime is expensive.

These applications justify stronger engineering, better components and disciplined inspection because pump failure can stop work, delay drainage or interrupt temporary bypass operations.

CONSTRUCTION

Dewatering & excavation

Groundwater, basements, tunnels and changing jobsite conditions.

FLOOD

Emergency drainage

Rapid deployment where suction performance, hose setup and runtime matter immediately.

MUNICIPAL

Stormwater / bypass pumping

Temporary drainage and infrastructure maintenance with repeatable deployment.

INDUSTRIAL

Large-volume transfer

Process water, site transfer and demanding temporary pumping duties.

04 · INSIDE THE SYSTEM

The parts that decide reliability are not always visible in the quotation.

A like-for-like review should go beyond engine brand and outlet diameter. Pump internals, priming equipment, control logic and service access often explain the real price difference.

Pump casing / voluteMaterial · wall thickness · wear areas · access

ImpellerGeometry · passage · material · balance

Mechanical sealSeal materials · assembly · dry-run sensitivity

Priming / vacuum systemAir handling · separators · valves · reliability

Engine + coolingDuty · ambient · fuel efficiency · serviceability

Controller / shutdownsOil pressure · temperature · overspeed · alarms

Fuel systemTank capacity · runtime · filtration · access

TrailerAxle · tyres · drawbar · supports · transport duty

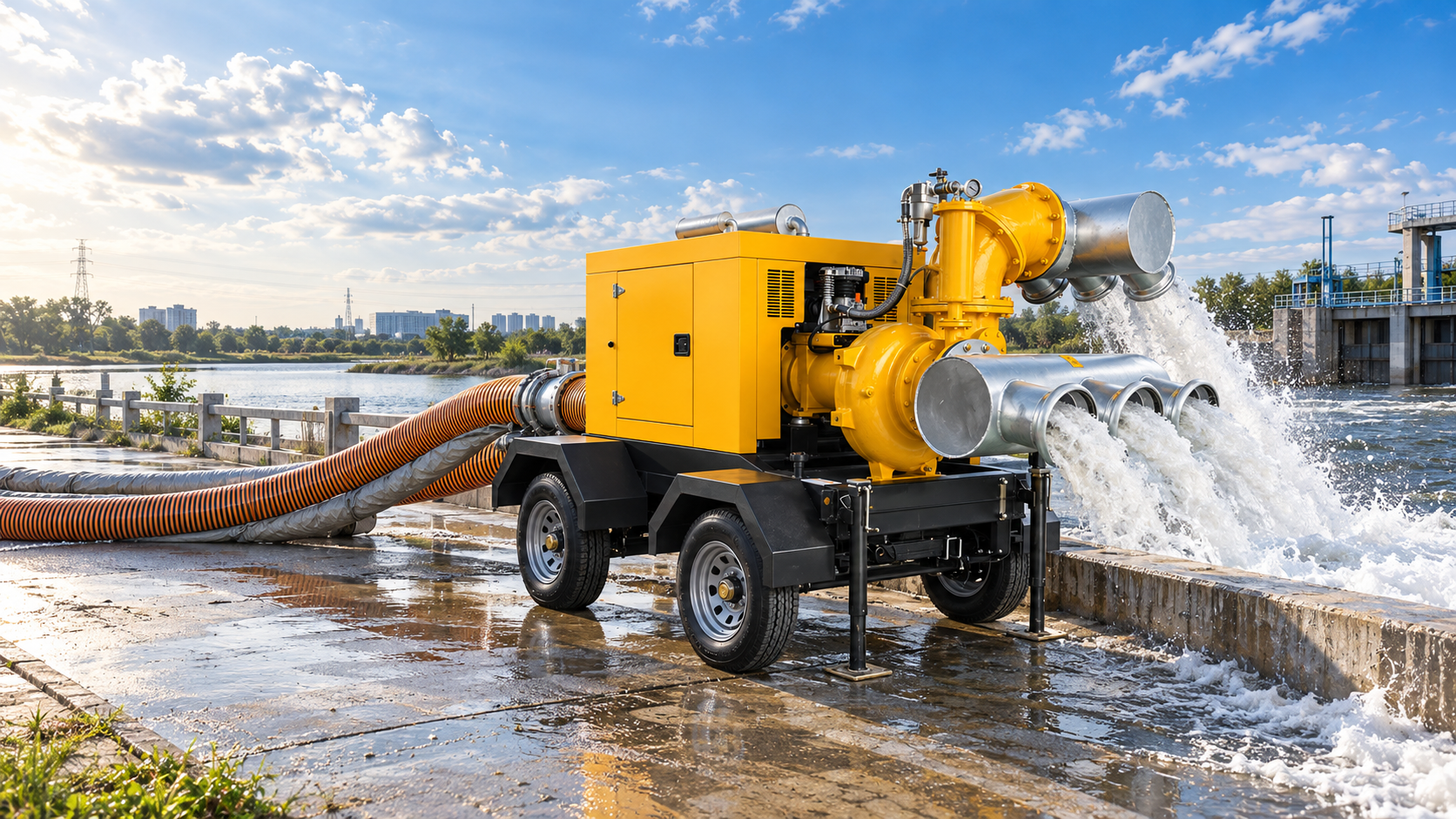

Representative mobile dewatering pump operating beside a riverbank

Large mobile dewatering system — product reference

05 · WHAT USUALLY GOES WRONG

The weak point is often outside the engine.

The supplier should be reviewed against likely site failure points before price is compared.

01Poor priming

Air leaks, weak priming system or incorrect suction setup.

02Seal leakage

Wrong seal material, poor assembly or dry-running damage.

03Wear / solids damage

Impeller, volute or passages not matched to the pumped medium.

04Overheating

Engine or enclosure cooling margin insufficient for site ambient.

05Transport damage

Weak trailer details, unsupported pipework or poor locking.

06 · LIKE-FOR-LIKE

Normalize the pump duty before comparing supplier price.

Put every quotation on the same duty, priming, solids, runtime, trailer and test basis. Only then does the price difference mean anything.

Comparison basis

Supplier A

Supplier B

Supplier C

Flow @ required head

Defined

Max flow only

Curve missing

Priming system

Specified

Generic

Not stated

Solids handling

Defined

Limited

Unclear

Fuel / runtime basis

Defined

Tank only

Not stated

Trailer duty

Defined

Standard

Unclear

Factory test basis

Agreed

Functional only

Not stated

Supplier A

Duty, priming, solids, runtime, trailer and test basis defined.

COMPARABLE

Supplier B

Headline data available, but several operating conditions remain open.

CLARIFY

Supplier C

Pump curve, priming and test basis not sufficiently defined.

NOT COMPARABLE

07 · MFG CHECKS

Inspect the complete pump system before release.

The inspection plan should verify the agreed build and functional behavior before shipment, not only confirm that the diesel engine starts.

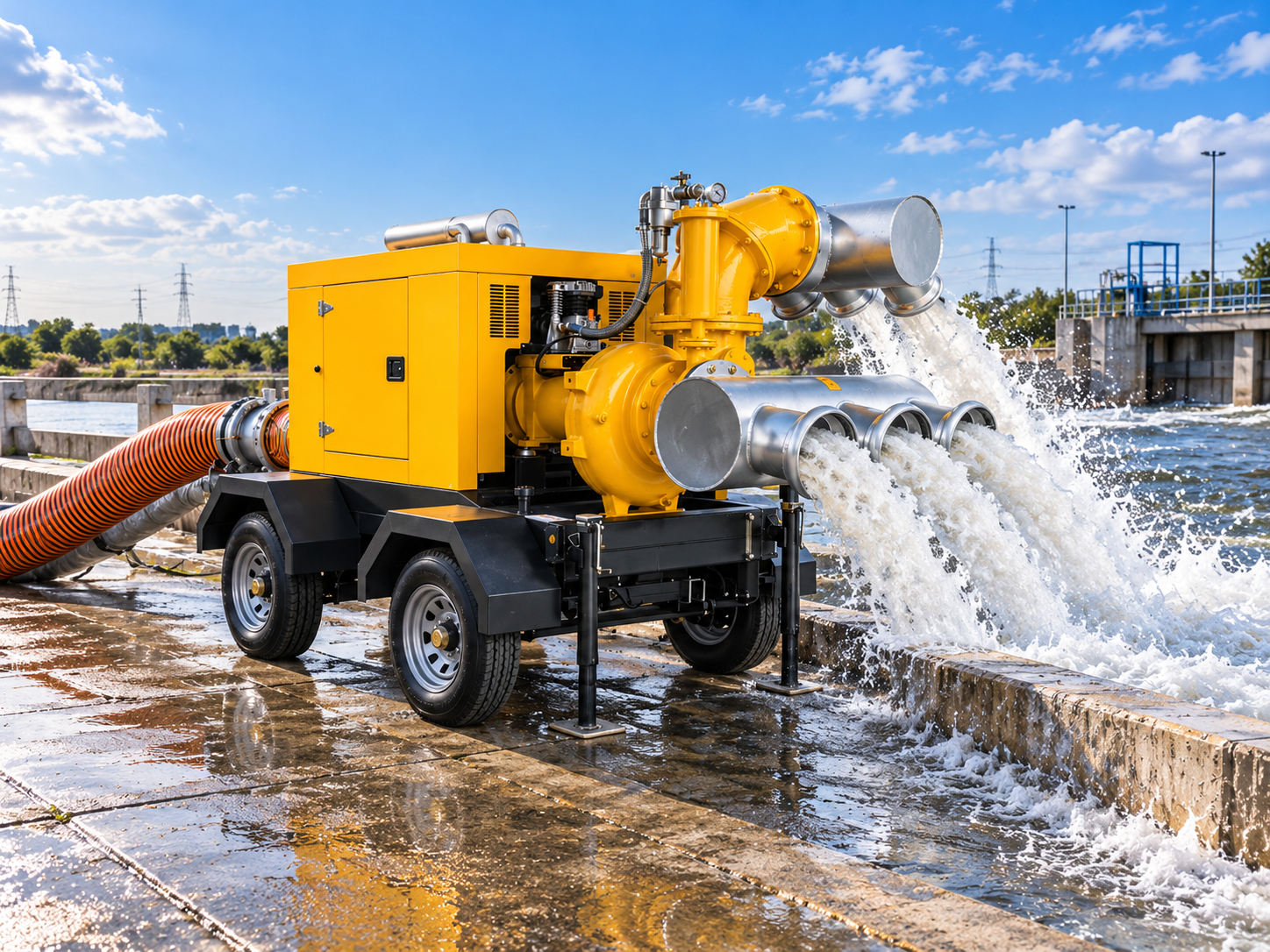

Large mobile dewatering pump running with hoses connected

PRELock the engineering basis

Pump duty · priming · engine · seal · trailer · controls · accessories.

MIDVerify the build

Critical parts · welding · piping · wiring · mounting · change control.

FINALRun the complete system

Priming · leakage · discharge · vibration · alarms · shutdowns · trailer functions.

08 · NEXT STEP

Send flow, head, suction, solids and site duty.

MFG can help turn the site requirement into a comparable buying basis, verify the supplier build and inspect the complete mobile pump system before shipment.

Send Pump Duty / Project Requirement → Engineering Review →
